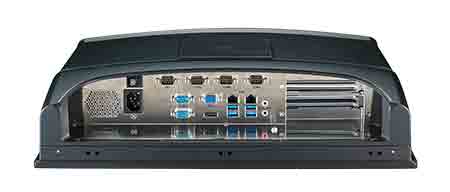

PPC-6191C-RMAE Chasis de PC de panel configurable de 19" para placa base Mini-ITX seleccionable
PC de pantalla plana real de 19" con pantalla táctil resistiva
Admite placas base mini-ITX certificadas (procesador TDP de hasta 45 W)
Ranuras de expansión PCI o PCIe
Indicadores LED de estado de energía frontales
Panel frontal con clasificación IP65
Módulo de montaje VESA opcional
Sin Certificación RED
Embedded Intel Atom Quad-Core E3845 1.91G
Fanless and Slim design
Supports one internal 2.5” SATA HDD, one mSATA socket
Built-in one PCI or one PCIe x1 expansion slot
Wide operating temp. range from -20~60°C
Wide range power input for 9~32V DC
One isolated RS-422/485 with Autoflow, Dual Intel GbE & One optional GPIO (8 channels, TTL level)
No RED Certification
Especificaciones
| Chasis para PPC-6191C-RMAE (Requerido) | Sin Selección o 19“ Panel PC with AIMB-275G2-00A3E -- PPC-6191C-RMAE|AIMB-275G2-00A3E |
| CPU para AIMB-275 para PPC-6151C/6171C/6191C-RMAE (Requerido) | Sin Selección o CELERON 2.3G 2M 1151P G3900TE -- 96MPCLS-2.3-2M11T o CORE 2.7G 4M 1151P 2 CORE I3-6100TE -- 96MPI3S-2.7-4M11T o CORE 2.3G 6M 1151P 4 CORE I5-6500TE -- 96MPI5S-2.3-6M11T1 o CORE 2.4G 8M 1151P 4 CORE I7-6700TE -- 96MPI7S-2.4-8M11T1 o CORE 3.9G 3M 1151P 2CORE I3-7101E -- 96MPI3K-3.9-3M11T o CORE 3.4G 6M 1151P 4CORE I5-7500 -- 96MPI5K-3.4-6M11T o CORE 3.6G 8M 1151P 4CORE I7-7700 -- 96MPI7K-3.6-8M11T o PENTIUM 2.4G 3M 1151P 2 CORE G4400TE -- 96MPPS-2.4-3M11T |
| Enfriador de CPU para AIMB-275 para PPC-6151C/6171C/6191C-RMAE (Requerido) | Sin Selección o C.L R3 I-LGA1155 S-95W 92.9x92.9x46-SS 12V0.4A -- 1960053207N001 |
| Memoria RAM DDR4 2400/2666/3200 260pin Max 16G/SODIMM1 (Requerido) | Sin Selección o (DEL22)8G SO-DDR4-2400 1GX8 1.2V SAM -- AQD-SD4U8GN24-SE o 4G SO-DDR4-2666 512MbX8 1.2V SAM -- AQD-SD4U4GN26-SG o 8G SO-DDR4-2666 1GbX8 1.2V SAM -- AQD-SD4U8GN26-SE o 16G SO-DDR4-2666 1GbX8 1.2V SAM -- AQD-SD4U16N26-SE o 4GB SO-DDR4 3200 512MX16 SAM -- AQD-SD4U4GN32-SP o 8GB DDR4 SODIMM-3200 1GbX8 SAM -- AQD-SD4U8GN32-SE o 16GB DDR4 SODIMM-3200 1GbX8 SAM -- AQD-SD4U16GN32-SE |
| Memoria RAM DDR4 2400/2666/3200 260pin Max 16G/SODIMM2 | Sin Selección o (DEL22)8G SO-DDR4-2400 1GX8 1.2V SAM -- AQD-SD4U8GN24-SE o 4G SO-DDR4-2666 512MbX8 1.2V SAM -- AQD-SD4U4GN26-SG o 8G SO-DDR4-2666 1GbX8 1.2V SAM -- AQD-SD4U8GN26-SE o 16G SO-DDR4-2666 1GbX8 1.2V SAM -- AQD-SD4U16N26-SE o 4GB SO-DDR4 3200 512MX16 SAM -- AQD-SD4U4GN32-SP o 8GB DDR4 SODIMM-3200 1GbX8 SAM -- AQD-SD4U8GN32-SE o 16GB DDR4 SODIMM-3200 1GbX8 SAM -- AQD-SD4U16GN32-SE |
| Almacenamiento 2.5" SATA (HDD/SSD) para TPC/SPC | Sin Selección o TR 32GB 2.5" SSD SATAIII MLC -- 96FD25-S032-TR71 o TR 64GB 2.5" SSD SATAIII MLC -- 96FD25-S064-TR71 o TR 128GB 2.5" SSD SATAIII MLC -- 96FD25-S128-TR71 o TR 256GB 2.5" SSD SATAIII MLC -- 96FD25-S256-TR71 o TR 64GB 2.5" SSD SATAIII MLC -40~90°C -- 96FD25-S064-ITR4 o TR 128GB 2.5" SSD SATAIII MLC -40~90°C -- 96FD25-S128-ITR4 o TR 256GB 2.5" SSD SATAIII MLC -40~90°C -- 96FD25-S256-ITR4 o SQF 2.5" SSD 640-C 32G 3D BiCS4 (0~70°C) -- SQF-S25V1-32GCSBC o SQF 2.5" SSD 640 64G 3D BiCS4 (0~70°C) -- SQF-S25V2-64GCSBC o SQF 2.5" SSD 640-C 128G 3D BiCS4 (0~70°C) -- SQF-S25V2-128GCSBC o SQF 2.5" SSD 640-C 256G 3D BiCS4 (0~70°C) -- SQF-S25V2-256GCSBC o SQF 2.5" SSD 640-C 512G 3D BiCS4 (0~70°C) -- SQF-S25V4-512GCSBC o SQF 2.5" SSD 640-C 1T 3D BiCS4 (0~70°C) -- SQF-S25V4-1TCSBC o SQF 2.5" SSD 640-C 32G 3D sTLC BiCS4 (0~70°C) -- SQF-S25Z2-32GCSBC o SQF 2.5" SSD 640-C 64G 3D sTLC BiCS4 (0~70°C) -- SQF-S25Z2-64GCSBC o SQF 2.5" SSD 640-C 128G 3D sTLC BiCS4 (0~70°C) -- SQF-S25Z4-128GCSBC o SQF 2.5" SSD 640-C 256G 3D sTLC BiCS4 (0~70°C) -- SQF-S25Z4-256GCSBC o SQF 2.5" SSD 640-C 32G 3D sTLC BiCS4 (-40~85°C) -- SQF-S25Z2-32GCSBE o SQF 2.5" SSD 640-C 64G 3D sTLC BiCS4 (-40~85°C) -- SQF-S25Z2-64GCSBE o SQF 2.5" SSD 640-C 128G 3D sTLC BiCS4 (-40~85°C) -- SQF-S25Z4-128GCSBE o SQF 2.5" SSD 640-C 256G 3D sTLC BiCS4 (-40~85°C) -- SQF-S25Z4-256GCSBE o SSSTC SEMI-WT SSD 128GB 2.5" SATA3 Tos 96 TLC -- 96FD25-S128-TS o SQF 2.5" SSD 640 128G MLC (-40~85°C) -- SQF-S25M4-128G-SBE o SQF 2.5" SSD 640 512G MLC (-40~85°C) -- SQF-S25M4-512G-SBE o SQF 2.5" SSD 640 32G MLC (0~70°C) -- SQF-S25M2-32G-SBC o SQF 2.5" SSD 640 32G MLC (-40~85°C) -- SQF-S25M2-32G-SBE o SG 2.5" 500G 5KRPM 7MM SATAIII 128MB -- 96ND500G-ST-SG5KG o SQF 2.5" SSD 640 64G MLC (0~70°C) -- SQF-S25M4-64G-SBC o SG 2.5" 2TB 5KRPM 7MM SATAIII 128MB -- 96ND2TB-ST-SG5KG1 o SQF 2.5" SSD 640 64G MLC (-40~85°C) -- SQF-S25M4-64G-SBE o SQF 2.5" SSD 640 128G MLC (0~70°C) -- SQF-S25M4-128G-SBC o SG 2.5" 1TB 5KRPM 7MM SATAIII 128MB -- 96ND1TB-ST-SG5KG1 o SQF 2.5" SSD 640 256G MLC (0~70°C) -- SQF-S25M4-256G-SBC o WD 2.5 1TB 5KRPM 7MM SATA3 128MB -- 96ND1TB-ST-WD5KG o WD AV 500G 2.5" SATAII 5KRPM 16MB 7mm -- 96ND500G-ST-WD5KA o SQF 2.5" SSD 640 16G MLC (0~70°C) -- SQF-S25M1-16G-SBC o WD IPC 2.5 2TB 5KRPM 7MM SATAIII 128MB -- 96ND2TB-ST-WD5KG o SQF 2.5" SSD 640 16G MLC (-40~85°C) -- SQF-S25M1-16G-SBE o SQF 2.5" SSD 640 512G MLC (0~70°C) -- SQF-S25M4-512G-SBC o SEAGATE 1TB 2.5" SATAIII 5KRPM 128M 24*7 -- 96ND1TB-ST-SG5KA o SG AV 2.5" 2TB SATAIII 5K 128MB -- 96ND2TB-ST-SG5KA |
| Almacenamiento 2.5" SATA (HDD/SSD) para TPC/SPC Bahía 2 | Sin Selección o TR 32GB 2.5" SSD SATAIII MLC -- 96FD25-S032-TR71 o TR 64GB 2.5" SSD SATAIII MLC -- 96FD25-S064-TR71 o TR 128GB 2.5" SSD SATAIII MLC -- 96FD25-S128-TR71 o TR 256GB 2.5" SSD SATAIII MLC -- 96FD25-S256-TR71 o TR 64GB 2.5" SSD SATAIII MLC -40~90°C -- 96FD25-S064-ITR4 o TR 128GB 2.5" SSD SATAIII MLC -40~90°C -- 96FD25-S128-ITR4 o TR 256GB 2.5" SSD SATAIII MLC -40~90°C -- 96FD25-S256-ITR4 o SQF 2.5" SSD 640-C 32G 3D BiCS4 (0~70°C) -- SQF-S25V1-32GCSBC o SQF 2.5" SSD 640 64G 3D BiCS4 (0~70°C) -- SQF-S25V2-64GCSBC o SQF 2.5" SSD 640-C 128G 3D BiCS4 (0~70°C) -- SQF-S25V2-128GCSBC o SQF 2.5" SSD 640-C 256G 3D BiCS4 (0~70°C) -- SQF-S25V2-256GCSBC o SQF 2.5" SSD 640-C 512G 3D BiCS4 (0~70°C) -- SQF-S25V4-512GCSBC o SQF 2.5" SSD 640-C 1T 3D BiCS4 (0~70°C) -- SQF-S25V4-1TCSBC o SQF 2.5" SSD 640-C 32G 3D sTLC BiCS4 (0~70°C) -- SQF-S25Z2-32GCSBC o SQF 2.5" SSD 640-C 64G 3D sTLC BiCS4 (0~70°C) -- SQF-S25Z2-64GCSBC o SQF 2.5" SSD 640-C 128G 3D sTLC BiCS4 (0~70°C) -- SQF-S25Z4-128GCSBC o SQF 2.5" SSD 640-C 256G 3D sTLC BiCS4 (0~70°C) -- SQF-S25Z4-256GCSBC o SQF 2.5" SSD 640-C 32G 3D sTLC BiCS4 (-40~85°C) -- SQF-S25Z2-32GCSBE o SQF 2.5" SSD 640-C 64G 3D sTLC BiCS4 (-40~85°C) -- SQF-S25Z2-64GCSBE o SQF 2.5" SSD 640-C 128G 3D sTLC BiCS4 (-40~85°C) -- SQF-S25Z4-128GCSBE o SQF 2.5" SSD 640-C 256G 3D sTLC BiCS4 (-40~85°C) -- SQF-S25Z4-256GCSBE o SSSTC SEMI-WT SSD 128GB 2.5" SATA3 Tos 96 TLC -- 96FD25-S128-TS o SQF 2.5" SSD 640 128G MLC (-40~85°C) -- SQF-S25M4-128G-SBE o SQF 2.5" SSD 640 512G MLC (-40~85°C) -- SQF-S25M4-512G-SBE o SQF 2.5" SSD 640 32G MLC (0~70°C) -- SQF-S25M2-32G-SBC o SQF 2.5" SSD 640 32G MLC (-40~85°C) -- SQF-S25M2-32G-SBE o SG 2.5" 500G 5KRPM 7MM SATAIII 128MB -- 96ND500G-ST-SG5KG o SQF 2.5" SSD 640 64G MLC (0~70°C) -- SQF-S25M4-64G-SBC o SG 2.5" 2TB 5KRPM 7MM SATAIII 128MB -- 96ND2TB-ST-SG5KG1 o SQF 2.5" SSD 640 64G MLC (-40~85°C) -- SQF-S25M4-64G-SBE o SQF 2.5" SSD 640 128G MLC (0~70°C) -- SQF-S25M4-128G-SBC o SG 2.5" 1TB 5KRPM 7MM SATAIII 128MB -- 96ND1TB-ST-SG5KG1 o SQF 2.5" SSD 640 256G MLC (0~70°C) -- SQF-S25M4-256G-SBC o WD 2.5 1TB 5KRPM 7MM SATA3 128MB -- 96ND1TB-ST-WD5KG o WD AV 500G 2.5" SATAII 5KRPM 16MB 7mm -- 96ND500G-ST-WD5KA o SQF 2.5" SSD 640 16G MLC (0~70°C) -- SQF-S25M1-16G-SBC o WD IPC 2.5 2TB 5KRPM 7MM SATAIII 128MB -- 96ND2TB-ST-WD5KG o SQF 2.5" SSD 640 16G MLC (-40~85°C) -- SQF-S25M1-16G-SBE o SQF 2.5" SSD 640 512G MLC (0~70°C) -- SQF-S25M4-512G-SBC o SEAGATE 1TB 2.5" SATAIII 5KRPM 128M 24*7 -- 96ND1TB-ST-SG5KA o SG AV 2.5" 2TB SATAIII 5K 128MB -- 96ND2TB-ST-SG5KA |
| Almacenamiento SSD mSATA de Tamaño Completo | Sin Selección o SQF mSATA 640 16G MLC (0~70°C) -- SQF-SMSM1-16G-SBC o SQF mSATA SSD 640-C 64G 3D BiCS4 (0~70°C) -- SQF-SMSV2-64GCSBC o SQF mSATA 640-C 32G 3D sTLC BiCS4 (-40~85°C) -- SQF-SMSZ2-32GCSBE o SQF mSATA 640 16G MLC (-40~85°C) -- SQF-SMSM1-16G-SBE o SQF mSATA SSD 640-C 128G 3D BiCS4 (0~70°C) -- SQF-SMSV2-128GCSBC o SQF mSATA 640-C 64G 3D sTLC BiCS4 (-40~85°C) -- SQF-SMSZ2-64GCSBE o SQF mSATA 640 256G 3D BiCS4 (0~70°C) -- SQF-SMSV2-256GCSBC o SQF mSATA 640 32G MLC (0~70°C) -- SQF-SMSM1-32G-SBC o SQF mSATA 640 32G MLC (0~70°C) -- SQF-SMSM2-32G-SBC o SQF mSATA 640 32G MLC (-40~85°C) -- SQF-SMSM2-32G-SBE o SQF mSATA 640 64G MLC (0~70°C) -- SQF-SMSM2-64G-SBC o SQF mSATA 640 64G MLC (-40~85°C) -- SQF-SMSM2-64G-SBE o SQF mSATA 640 128G MLC (0~70°C) -- SQF-SMSM4-128G-SBC o SQF mSATA 640 128G MLC (-40~85°C) -- SQF-SMSM4-128G-SBE o SQF mSATA 640 256G MLC (0~70°C) -- SQF-SMSM4-256G-SBC o SQF mSATA 640 256G MLC (-40~85°C) -- SQF-SMSM4-256G-SBE o SQF mSATA 640 512G MLC (0~70°C) -- SQF-SMSM4-512G-SBC o SQF mSATA SSD 640-C 32G 3D BiCS4 (0~70°C) -- SQF-SMSV1-32GCSBC o SQF mSATA SSD 640 512G 3D BiCS4 (0~70°C) -- SQF-SMSV4-512GCSBC o SQF mSATA SSD 640-C 1T 3D BiCS4 (0~70°C) -- SQF-SMSV4-1TCSBC o SQF mSATA 640-C 16G 3D sTLC BiCS4 (0~70°C) -- SQF-SMSZ2-16GCSBC o SQF mSATA 640-C 32G 3D sTLC BiCS4 (0~70°C) -- SQF-SMSZ2-32GCSBC o SQF mSATA 640-C 64G 3D sTLC BiCS4 (0~70°C) -- SQF-SMSZ2-64GCSBC o SQF mSATA 640-C 128G 3D sTLC BiCS4 (0~70°C) -- SQF-SMSZ4-128GCSBC o SQF mSATA 640-C 256G 3D sTLC BiCS4 (0~70°C) -- SQF-SMSZ4-256GCSBC o SQF mSATA 640-C 16G 3D sTLC BiCS4 (-40~85°C) -- SQF-SMSZ2-16GCSBE o SQF mSATA 640-C 128G 3D sTLC BiCS4 (-40~85°C) -- SQF-SMSZ4-128GCSBE o SQF mSATA 640-C 256G 3D sTLC BiCS4 (-40~85°C) -- SQF-SMSZ4-256GCSBE |
| Sistema Operativo para PPC-6151C/6171C/6191C-RMAE | Sin Selección o Win Pro 7 Emb x32/64 ORY OEI 42C-00021 -- 968QW7PROE|INSTALL-OS-32BIT o Win10 IoT Ent LTSB 2016 MultiLang ORY Value EPKE -- 968QW16VLE o Win Pro 7 Emb x32/64 ORY OEI 42C-00021 -- 968QW7PROE|INSTALL-OS-64BIT o Win10 IoT Ent LTSB 2016 MultiLang ORY High End -- 968QW16HLE o (DEL22)WIN 10 PRO 64BIT ENG DVD USA MPN -- 96SW-WIN10P1-64-EN o Win 10 IoT Ent 2019 LTSC MultiLang ORY OEI Value -- 968QW19VLE o Win 10 IoT Ent 2019 LTSC MultiLang ORY OEI High -- 968QW19HLE |
| Kit Módulo PPC-WiFi con Antena y Cable incluido | Sin Selección o Nuevo módulo WiFi M.2 compatible con 2T2R -- PPC-WLAN-C1E |
| Brazo VESA PPC-61X1C | Sin Selección o PPC ARM VESA Standard (A-CLEVER) -- PPC-ARM-A03 |
| Kit de Montaje en pared PPC-61X1C | Sin Selección o Wall mount kit A800B for PPC-174T -- PPC-174T-WL-MTE |
| Cable de Alimentación | Sin Selección o Cable de Alimentación UL 3P 10A 125V 183cm -- 1702002600 o Cable de Alimentación UL 3P 10A 125V 183cm -- 1702002600-01 o Cable de Alimentación ISI 3P 16A 250V 183cm -- 1700025854-02 o Cable de Alimentación EU 3P 10A 250V 183cm 90° -- 1702002605 o Cable de Alimentación UL 3P 15A 125V 183cm(IEC320-C19) -- 1700021723-01 o Cable de Alimentación EU 3P 10A 250V 183cm -- 1700020728-01 o Cable de Alimentación UL 3P 15A 250V 183cm -- 1700023671-01 o Cable de Alimentación BSI 3P 10A 250V 183cm -- 1702031801 o Cable de Alimentación PSE 3P 20A 250V 183cm -- 1700023536-01 o Cable de Alimentación CCC 3P 16A 250V 183cm -- 1700023535-01 o Cable de Alimentación BSI 3P 16A 250V 183cm -- 1700023534-01 o Cable de Alimentación EU 3P 16A 250V 183cm -- 1700023533-01 o Cable de Alimentación UL 3P 20A 250V 183cm -- 1700023532-01 o Cable de Alimentación UL 3P 15A 250V 180cm(ICE60320-C15) -- 1700021975-01 o Cable de Alimentación Militar SAA 3P 10A 250V 183cm -- 1700020098 o Cable de Alimentación Militar EU 3P 10A 250V 183cm -- 1700020096 o Cable de Alimentación Militar UL 3P 15A 125V 183cm -- 1700020095 |
| Ensamble Estándar, Pruebas Funcionales, SW inst (Moderado) (Requerido) | Sin Selección o Montaje Estándar+Pruebas Funcionales+Software -- AGS-CTOS-SYS-A |
| Burn-In test extra opcional a temperatura ambiente | Sin Selección o Burn-In Test con 24 hrs a temperatura ambiente -- AGS-CTOS-BIT-24 o Burn-In Test con 48 hrs a temperatura ambiente -- AGS-CTOS-BIT-48 o Burn-In Test con 72 hrs a temperatura ambiente -- AGS-CTOS-BIT-72 |
